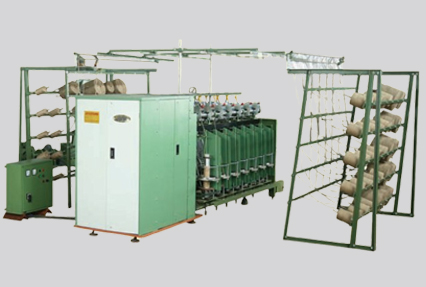

Jute Twine Twister
Specification
Jute Twine Twister
No Of Spindles : 144 96 80
Spindle Gauge : 9" 11" 14"
Ring Dia.Meter : 6.1/2" 8" 10"
Ring Height : 1" 1" 1.1/2"
Sprindle Speed Max RPM : 4000 3200 2400
Spindle Lift : 14" 14" 14"
Twist Range : 3.5-14 TPI 1.5-14 TPI 1.5-14 TPI
Stop Motion : Mechanical Type Mechanical Type
Required Power in HP : 20 25 25 30
LBS : 4-9 LBS 9LBS-20X5 LBS 14LBS-28X5 LBS.
Required Power in HP : 20/30 HP 30/40 HP 40 HP.
Materials : Cotton Twine and Ropes, Multi Fold Jute Twine and Ropes
Spindle Gauge : 9" 11" 14"
Ring Dia.Meter : 6.1/2" 8" 10"
Ring Height : 1" 1" 1.1/2"
Sprindle Speed Max RPM : 4000 3200 2400
Spindle Lift : 14" 14" 14"
Twist Range : 3.5-14 TPI 1.5-14 TPI 1.5-14 TPI
Stop Motion : Mechanical Type Mechanical Type
Required Power in HP : 20 25 25 30
LBS : 4-9 LBS 9LBS-20X5 LBS 14LBS-28X5 LBS.
Required Power in HP : 20/30 HP 30/40 HP 40 HP.
Materials : Cotton Twine and Ropes, Multi Fold Jute Twine and Ropes
-
Application :
- Used for Producing Multifold Jute Twines fromTwo Ply's To Six Ply's and cotton Twine and Ropes
