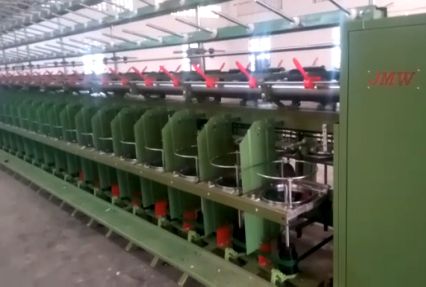

Medium Ring Twister Ply & Cabler
A medium ring twister is a machine used in the textile industry to twist yarns or threads. It typically consists of a ring spinning mechanism where yarn is fed through traveler rings and wound onto bobbins or cops. The twisting action imparts strength and stability to the yarn, making it suitable for weaving or knitting.
Applications :
Specifications :
| No. Of Spindles | 440 | 344 | 300 | 200 | 144 | 120 | 60/80 | 60 | 60 |
|---|---|---|---|---|---|---|---|---|---|
| Spindle Gauge | 3.1/2" | 4" | 4.1/2" | 6" | 8" | 9" | 12" | 14" | 16" |
| Ring Dia.Meter | 2.1/2" | 3" | 3.1/2" | 4.1/2" | 5.1/2" | 6.1/2" | 8.1/2" | 10 | 11.1/4" |
| Ring Height | 21/32" | 21/32" | 21/32" | 21/32" | 1" | 1" | 1.1/2" | 1.1/2" | 2" |
| Spindle Speed Max Rpm | 8000 | 7000 | 6000 | 5000 | 4000 | 3500 | 2800 | 2000 | 1850 |
| Lift | 10" | 10" | 10" | 12" | 12" | 12" | 12"or14" | 12"or14" | 12"or14" |
| Dinier Range Min | 100 | 210 | 210 | 600 | 840 | 840 | 1260 | 5000 | 5000 |
| Dinier Range Max | 600 | 840 | 1600 | 3000 | 5000 | 12000 | 30000 | 35000 | 50000 |
| Required Power in HP | 15 | 15 | 15 | 20 | 20 | 25 | 25 | 30 | 40 |
Materials : Multifilament Nylon, Monofilament Nylon, HDPE, P.P Fabrillated tapes, Fibre Glass, Natural Fibres, Man made fibre, Baler Twine, Danline Ropes.
Features and Benefits
They are engineered to deliver high performance, reliability and efficiency, helping textile manufacturers optimize their production processes and stay competitive in the market.
Innovation and R & D
JMW Machine Works continuously invests in research and development to stay at the forefront of technological advancements in the textile industry.
Customer Support and Service
In addition to offering top-notch machinery, JMW Machine Works is committed to providing excellent customer support and service.
