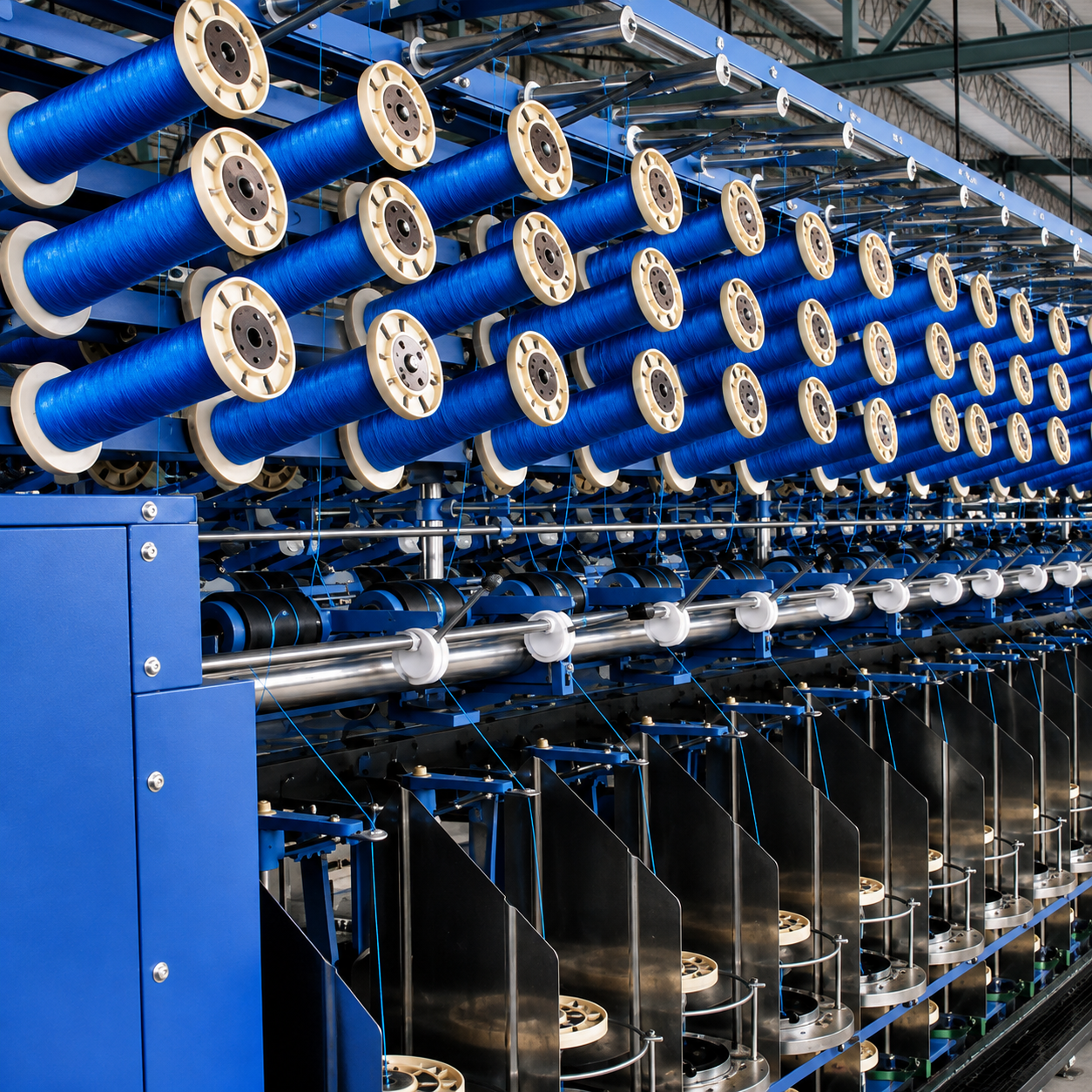

Heavy Ring TwisterHeavy Ring Twister
This machine is designed to twist yarns or threads to increase their strength, stability, and other desired properties. The ‘heavy’ designation indicates that it is suitable for processing thicker or heavier yarns compared to standard ring twisters. Heavy ring twisters are often used in the production of industrial yarns, ropes, cords, and other heavy-duty textile products.
Applications
Specifications
- Suitable Yarn/Fiber Twisting
- Nylon M.F, Polyester M.F, PP M.F, PE, HDPE, PA Fibrillated, Fiber Glass, Acrylics, Cotton, Jute Yarn
- Application
- Fishing Net Making (both Nylon and HDPE), Fishing Rope, Packing Rope, Shipping Rope, Mops, Carpet Twine, Filter Fabrics, Ballet Twine, Jute Rope
- Denier Range
- 110 Denier – 100000 Denier
- Construction
- 110/2, 210/3/4, 1000/10/5
- Speed
- Up to 9000 RPM
- Voltage
- 220/380/440V | 50–60 HZ
- Drive System
- Fully Mechanical Gear Drive System with Main Motor VFD Control and Fully PLC Control through VFD Drive System
- Model
- JMW 7 FRD, JMW 3 HT, JMW JT5HT, JME5RW, JMWSD, JMW4T, JMW ROPE TWISTER
- Bobbin Shape
- Doubled Flanged Bobbin, Bottle Shape Build Up, Cop Build Up
- Certification
- ISO 9001-2015
Materials Processed
Features and Benefits
They are engineered to deliver high performance, reliability and efficiency, helping textile manufacturers optimize their production processes and stay competitive in the market.
Innovation and R&D
JMW Machine Works continuously invests in research and development to stay at the forefront of technological advancements in the textile industry.
Customer Support and Service
In addition to offering top-notch machinery, JMW Machine Works is committed to providing excellent customer support and service.
Ready to elevate your production?
Speak with our team about custom textile twisting machinery tailored to your needs.
